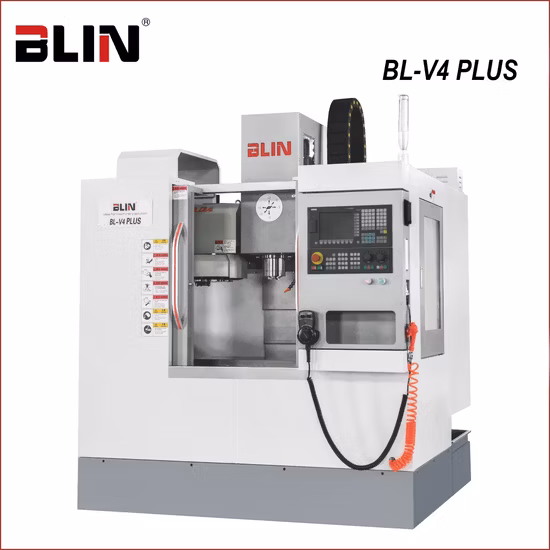

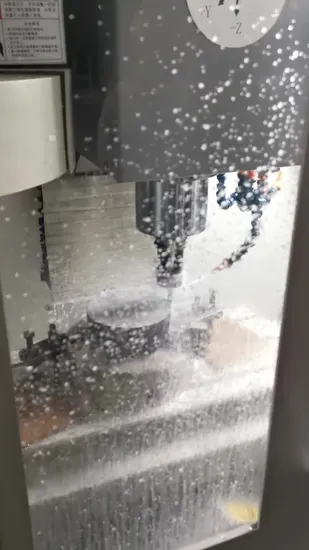

CNC Machine Center Vmc (BL-V4 PLUS)
CNC Machine Center/VMC/VMC Machine (BL-V4 PLUS) -3 axes adopt high precision linear guideway -Designed by GERMAN enginee
Description
Basic Info
| Model NO. | BL-V4 PLUS |
| After-sales Service | One Year |
| Warranty | One Year |
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools |
| Movement Method | Contour Control |
| Control Method | Closed-Loop Control |
| Numerical Control | CNC/MNC |
| Processing Precision | 0.01mm |
| Performance Classification | Economical CNC Machine Tools |
| Certification | CE, ISO 9001 |
| Condition | New |
| Table Size | 800×320mm |
| X/Y/Z Axes | 450/300/480mm |
| Spindle Type | Bt40 |
| Spindle Motor Power | 3.7kw |
| Spindle Speed Range | 8000/10000/12000rpm |
| Tool Magazine Type | Umbrella Type 12t/Arm Type 16t |
| Guideway Type | Linear Gudieway |
| Overall Dimension | 1830×1870×2120 |
| Weight | 2400 |
| Transport Package | Wooden Case |
| Specification | X/Y/Z axes travel: 450/300/480mm |
| Trademark | BLIN |
| Origin | China |
| HS Code | 8457101000 |
| Production Capacity | 480 Units/Year |
Product Description
-Designed by GERMAN engineer
-Whole production process accord to TAIWANESE standard
-Chips outlet set at the back of machine
-Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
-High speed, high precision, long using lifespan

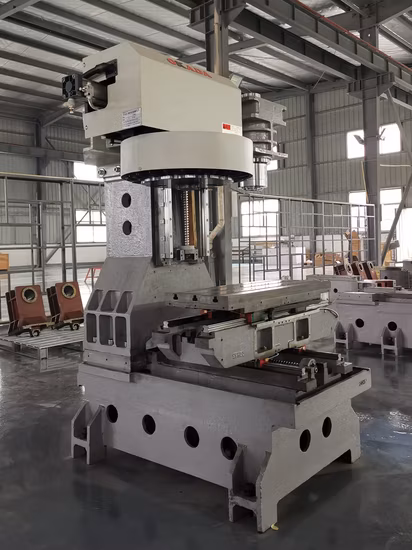

-Adopt HT300 high class cast iron,after aging treatment and FEA analysis
-Bridge shape column, high rigidity, high stability
-3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching,pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:
| Item | Specification | Unit | BL-V4 PLUS |
| Worktable | Table size | mm | 800×320 |
| Table max. loading | kg | 200 | |
| T slot(NO./width/gap) | mm | 3/14/100 | |
| Travel | X/Y/Z axes | mm | 450/300/480 |
| Spindle | Distance from spindle nose to table surface | mm | 105~585 |
| Distance from spindle center to column surface | mm | 375 | |
| Spindle type | mm | BT40/Φ120 7:24 | |
| Spindle motor | kw | 3.7(option:5.5kw) | |
| Spindle speed | rpm | Belt-drive: 8000/10000Direct-drive: 12000 | |
| Feeding axes | X,Y,Z axes ball screw O.D./pitch | mm | 32/12 |
| X,Y,Z axes linear guideway width | mm | 30 | |
| X/Y/Z axes motor | Nm | 6/6/11(SIEMENS 808D) | |
| Cutting feed speed | m/min | 12 | |
| X/Y/Z axes rapid moving speed | m/min | 36/36/24 | |
| Positioning precision | mm | ±0.005 | |
| Repeatable positioning precision | mm | ±0.003 | |
| Tool magazine | Tool magazine | / | Umbrella type 12T/Arm type 16T |
| Max. tool weight | kg | 8(Arm type 16T) | |
| Max. tool length | mm | 220(Arm type 16T) | |
| Max. tool dia.(fully loaded) | mm | 78(Arm type 16T) | |
| Max. tool dia.(no adjacent) | mm | 120(Arm type 16T) | |
| Others | Overall dimension(L×W×H) | mm | 1830×1870×2120 |
| Weight | kg | 2400 |
Main parts list:
| Item | Brand |
| Spindle bearing | JAPAN-NSK |
| Ball screw bearing | TAIWAN-TPI |
| Ball screw | JAPAN-THK/TAIWAN-HIWIN |
| Linear guideway | JAPAN-THK/TAIWAN-HIWIN |
| Spindle unit | TAIWAN-VYU CHEN |
| Tool magazine | TAIWAN-OKADA |
| Booster cylinder | TAIWAN-HAO CHENG |
| Lubrication pump | TAIWAN-BEISUN |
| Power switch | TAIWAN-MEANWELL |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electric parts | FRANCE-SCHNEIDER |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-12T Umbrellal type tool magazine
Optional configuration:
-SIEMENS 828D/FANUC 0I MF/GSK218MC -16T Arm type tool magazine-4th axes rotary table
Other models choice:All our machines range:
