3 Axis 4 Axis 5 Axis CNC Machine Tool Vmc 840 Vmc850 Vertical Milling CNC Machining Center
Description
Basic Info
| Model NO. | VMC850 |
| After-sales Service | Yes |
| Warranty | Yes |
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools |
| Movement Method | Contour Control |
| Control Method | Semi-Closed Loop Control |
| Numerical Control | CNC/MNC |
| Processing Precision | 0.03~0.04(mm) |
| Performance Classification | High-End CNC Machine Tools |
| Certification | CE, RoHS, ISO 9001 |
| Condition | New |
| Type | Worktable Milling Machine |
| Structure | Bed Type |
| Automatic Grade | Automatic |
| Precision | High Precision |
| Rapid Feed Speed(M/Min) | 36 \ 36 \ 32 |
| Weight (T) | 5 T |
| Min. Time of Tool Change(S) | 2 |
| Table Size (mm) | 1000X500 |
| Table Travel (Y) (mm) | 500 |
| Spindle Motor Power(Kw) | 7.5 |
| Max. Table Load(Kg) | 600 Kg |
| Core Components | Motor |
| Tool Magazine Capacity | 24 |
| Number of Axes | 3 |
| T Slot | 5-18X90 |
| Specification | 2700 * 2300 * 2300 |
| Trademark | iNC-MT |
| Origin | China |
Product Description
Hot Sale Small New 3 Axis 4 Axis 5 Axis CNC VMC 840 VMC850 Machining CenterVertical Milling CNC Machine
Product Description
1. VMC850P 3-axis linear guide vertical machining center
Table size:1000*500 mm
Travel of X/Y/Z axis:800*500*600 mm
φ40*16 screw lead
HIWIN/PMI 45 ball linear guide
spindle BT40-150-8000
disc type magazine of 24 tools
2. VMC850A 3 linear guides vertical machining center
Table size 1000*500 mm
Travel of X/Y/Z axis 800*500*500 mm
φ36*16 screw lead
HIWIN/PMI 35 ball linear guide
spindle BT40-140-10000
disc type magazine of 24 tools
3. VMC850B 3 hard guideways vertical machining center
Table size 1000*500 mm
Travel of X/Y/Z axis 800*500*500 mm
φ40*10 screw lead
spindle BT40-150-8000
disc type magazine of 24 tools
Hot Sale Small New VMC 3 axis 4 axis 5 axis CNC Machine Tool VMC 840 VMC850 Machining Center Vertical Milling CNC Machine Centre
Product Parameters
VMC850 technical parameter | |||
worktable | Worktable size | mm | 1000*500 |
Worktable max.load | kg | 600 | |
T-slot (number*width*distance) | 5-18*108 | ||
Travel | X-aixs travel | mm | 800 |
Y-aixs travel | mm | 500 | |
Z-aixs travel | mm | 500 | |
Distance from spindle nose to table surface | mm | 120-620 | |
Distance from spindle center to column guideway | mm | 581 | |
Spindle | Spindle transmission type | Belt type | |
Spindle taper | BT 40 φ140 | ||
Spindle speed | rpm | 8000 | |
Spindle motor | kw | 7.5 | |
Feed Speed | X/Y/Z-aixs rapid feed | m/min | 36\36\32 |
Cutting feed speed | mm/min | 1-10000 | |
Tool magazine | Tool number | pcs | 24 |
Tools change way | Disc type ATC | ||
Tool change time | s | 2-3 | |
Precision | Positioning precision | mm | ±0.008 |
Reported positioning precision | mm | ±0.005 | |
other | controller | KND | |
Overall size | mm | 2700*2300*2300 | |
Machine weight | kg | 5000 | |
VMC840(3axis hard rail) technical parameter | |||
worktable | Worktable size | mm | 1000*360 |
Worktable max.load | kg | 300 | |
T-slot (number*width*distance) | 3-18*100 | ||
Travel | X-aixs travel | mm | 800 |
Y-aixs travel | mm | 400 | |
Z-aixs travel | mm | 550 | |
Distance from spindle nose to table surface | mm | 100-650 | |
Distance from spindle center to column guideway | mm | 445 | |
Spindle | Spindle transmission type | Belt type | |
Spindle taper | BT 40 φ120 | ||
Spindle speed | rpm | 8000 | |
Spindle motor | kw | 5.5 | |
Feed Speed | X/Y/Z-aixs rapid feed | m/min | 15\15\8 |
Cutting feed speed | mm/min | 1-10000 | |
Tool magazine | Tool number | pcs | 16 |
Tools change way | Disc type ATC | ||
Tool change time | s | 2-3 | |
Precision | Positioning precision | mm | ±0.01 |
Reported positioning precision | mm | ±0.008 | |
other | controller | KND | |
Overall size | mm | 2500*2000*2100 | |
Machine weight | kg | 3200 | |
Configuration table
| VMC 850 Standard accessories | ||
| Item | Model and specification | Brand |
| CNC control system | HNC-808Di | HuazhongCNC |
| Servo drive and motor | System matching | HuazhongCNC |
| 3-Axis bearing | Inner diameter 25, outer diameter 52, P4 | TPI-Taiwan-China NACHI-Japan |
| 3 axis ball screw (C3 level) | FD3616 | Hiwin-Taiwan,China |
| Three axis ball linear guide | X/Y/Z:HGH35HA | Hiwin-Taiwan,China |
| Automatic tool changer | 24T Disk type | OKADA-Taiwan China |
| Spindle (Belt type) | BT40-140-8000r/min | Danquan/Haozhi-China |
| Pneumatic supercharger | 3.5T | Haocheng-Taiwan,China |
| Pneumatic control element | - | airtac -China |
| automatic lubrication system | TZ-2202-110A | Herg/Shengxiang |
| Coolant pump | CBK4-30/3 | Luokai-China |
| heat exchanger | HPW-10AF | Sanhetongfei/Wenheng-China |
CNC Controller
This controller is very suitable for the hot Sale Small New VMC 3 axis 4 axis 5 axis CNC Machine Tool VMC 840 VMC850 Machining Center Vertical Milling CNC Machine Centre
1. 2-4 axis control
2. 10.4" color LCD screen
3. Supporting NCUC, etherCAT bus protocol
4. Supporting 16,000,000PPR high-precision encoder
5. Supporting TCP\IP, Ethernet communication protocols
6. Smart function:
7. Big data of CNC machine tool
8. Broken tool inspection
9. Temperature compensation

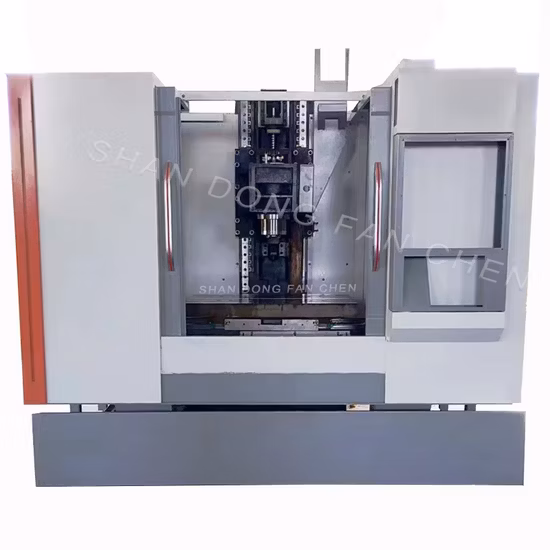

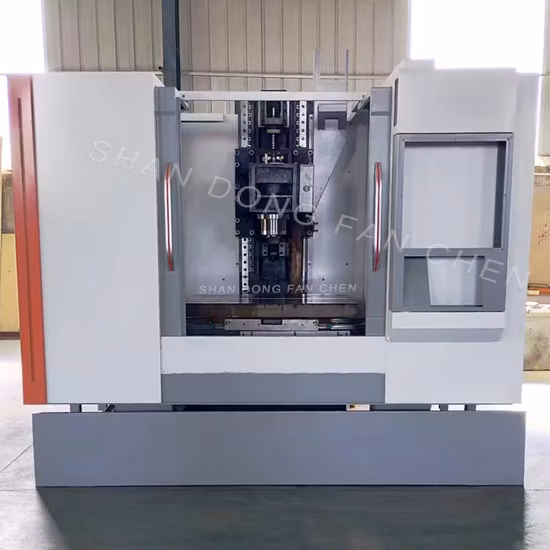

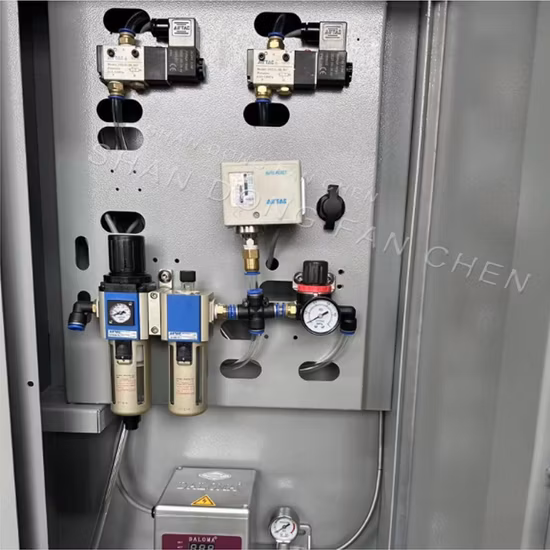

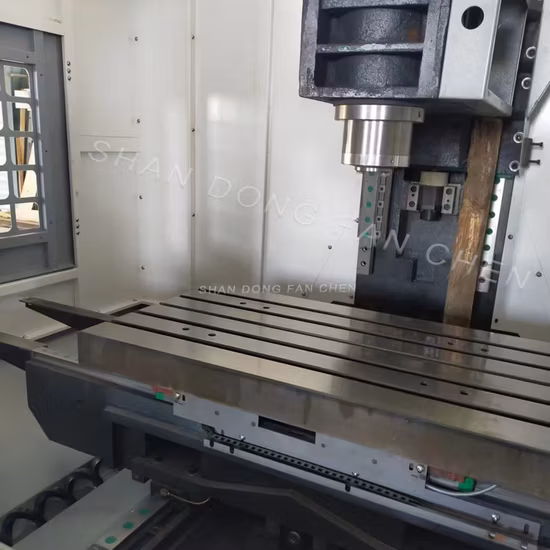

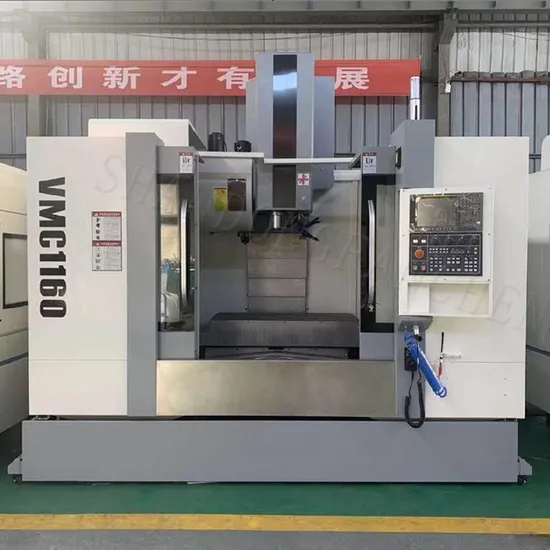

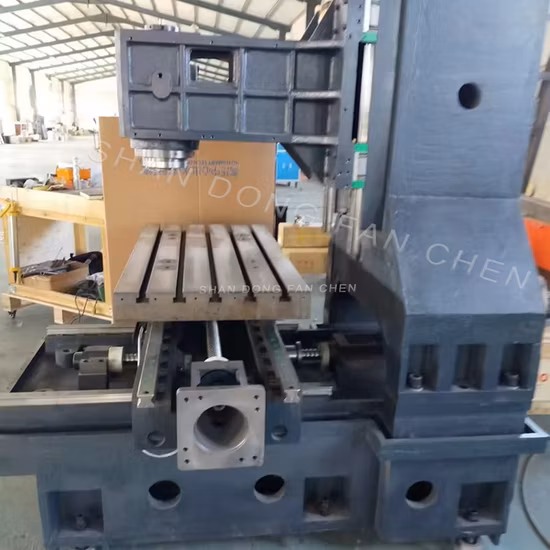

Detailed Photos
